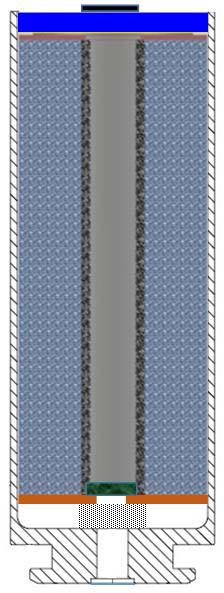

Model No.

AR-2-CS

Description

ARWEN Pyrotechnic Smoke, Standard Energy CS Irritant Smoke

Caliber

37mm ARWEN

Cartridge Type

Rebated Cartridge Case

Cartridge Material

Aluminium, Black Anodized

Outside Diameter

40mm

Overall Height

110mm

Overall Weight

173g ± 2g

Projectile Weight

102g ± 1g

Projectile Material

Aluminum Canister containing Pyrotechnic compound

Net Explosive Quantity

2.3g

Range

50~75mm depending on Barrel Angel

Irritant Agent

CS Smoke (2-chlorobenzalmalononitrile)

ClC6H4CHO + H2C(CN)2→ ClC6H4CHC(CN)2 + H2O

Net Irritant Agent

80 ± 1g

Compatibility

All 37mm ARWEN compatible Weapon Systems

Discharge Time

2.5 ~ 3 minutes

UN Number

UN0301

Proper Shipping Name

Ammunition, Tear-Producing

Hazard Class

1.4G (6.1) (8)

Quantity Per Package

12 Cartridges (2-4 boxes in master box)

75 Cartridges in metal drum

Total Package Weight

Box: 2.04kg (12 Cartridges)

Drum: 13.6kg (75 Cartridges)

Package Type

Fiberboard Boxes or Metal Drum with Lever Lock Lid meeting UN Specifications

Package Dimensions

Box: 16 x 24 x 19.5cm (12 Cartridges)

Drum: 35cm x 31cm (5 gal.)

US DoT Ref. No.

EX201604328
